Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 312

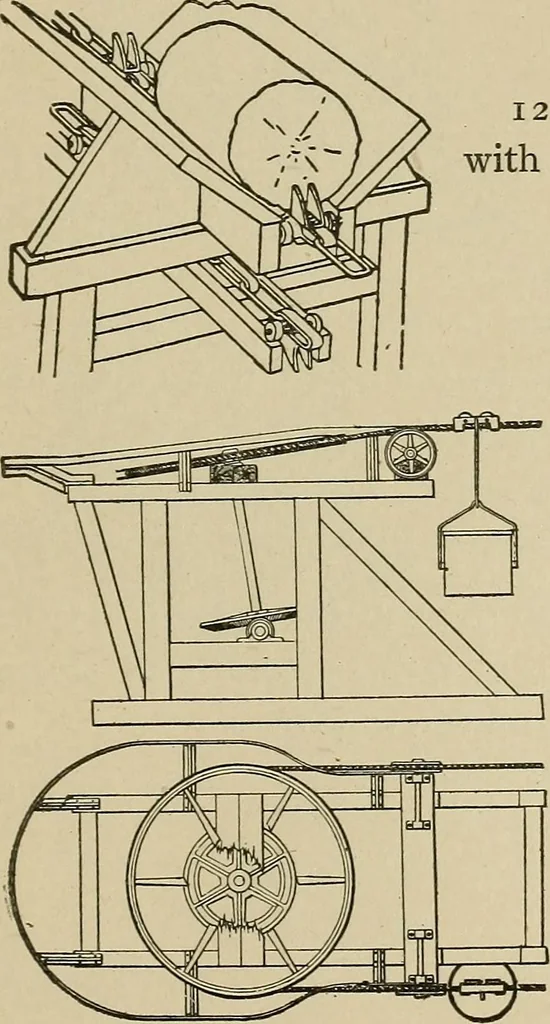

1225. CHAIN SCRAPER CON-VEYOR.—A chain supported on rollersand axles to which scrapers are fixedthat fit the conveyor trough. 1226. CABLE CONVEYOR.—Discsfixed to a cable running in a trough andreturning overhead. again into position for their next push. 1227. DRIVING MECHANISM for acoal or grain… … 1228. LOG CONVEYOR.—A link chainwith hooks running in a trough. 1229. ROPE TRAMWAY, over-head system. Elevation, showingthe switch rails for transferring thecarrier bucket around the terminal tothe return rope. Loading or unload-ing of the bucket is done at thetransfer switch. 1230. Plan showing…
Mechanical movements
