Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 316

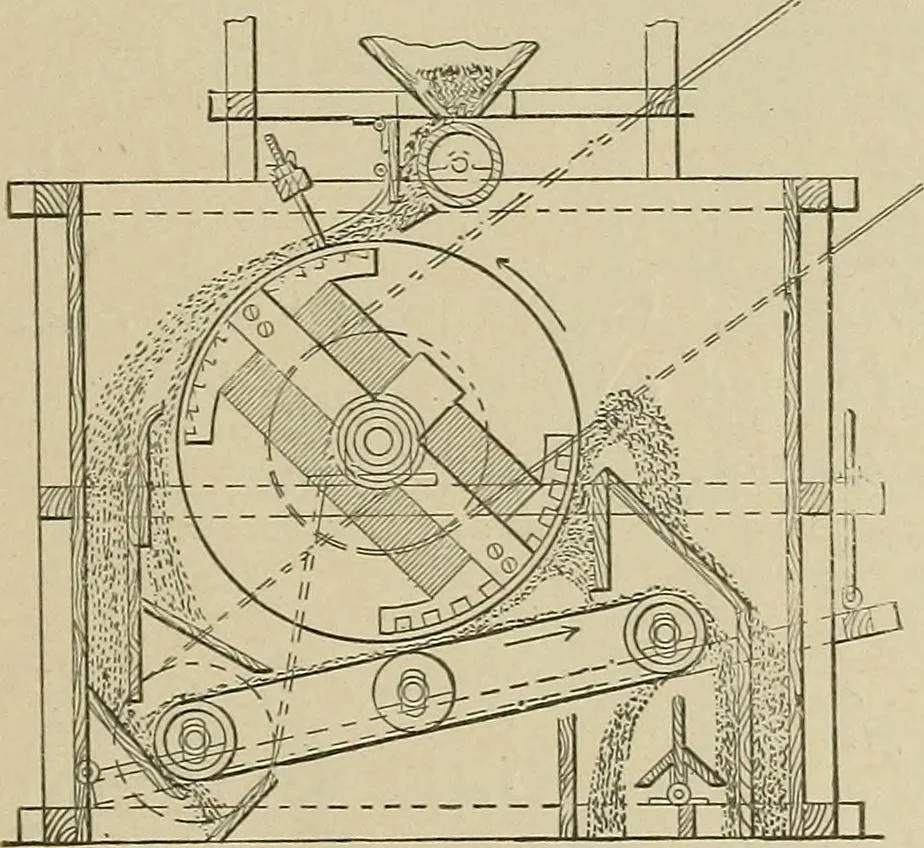

1248. IRON ORE SEPARA-TOR, Buchanan model. Thepulverized ore is fed from a hop-per to a revolving drum, a sectionon each side of which is magne-tized by a fixed electro-magnet.The magnetic particles are carriedaround by the drum to a part ofthe neutral section and discharged.An apron below,…
Mechanical movements
