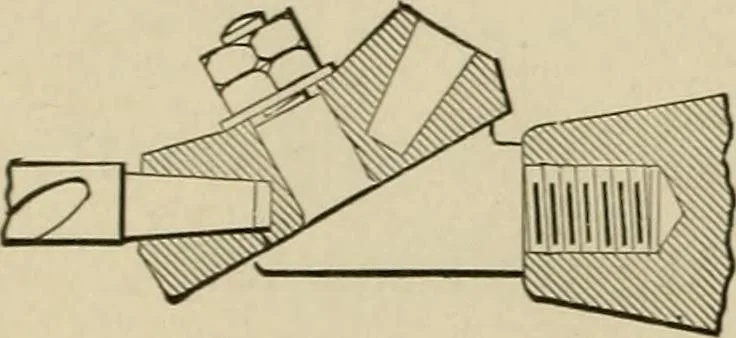

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 335 — 1337. ROLLER TUBEEXPANDER.—The rollersare loosely fitted in a caseto hold- them in position.The slightly tapered mandril is pushed or driven within and bearing onthe rollers and revolved by a bar in the mandril head, which revolvesthe rollers, rolling them over the interior surface of the boiler… … 1338. REVOLVING TOOL HEAD, for a Monitor lathe.
