Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 339

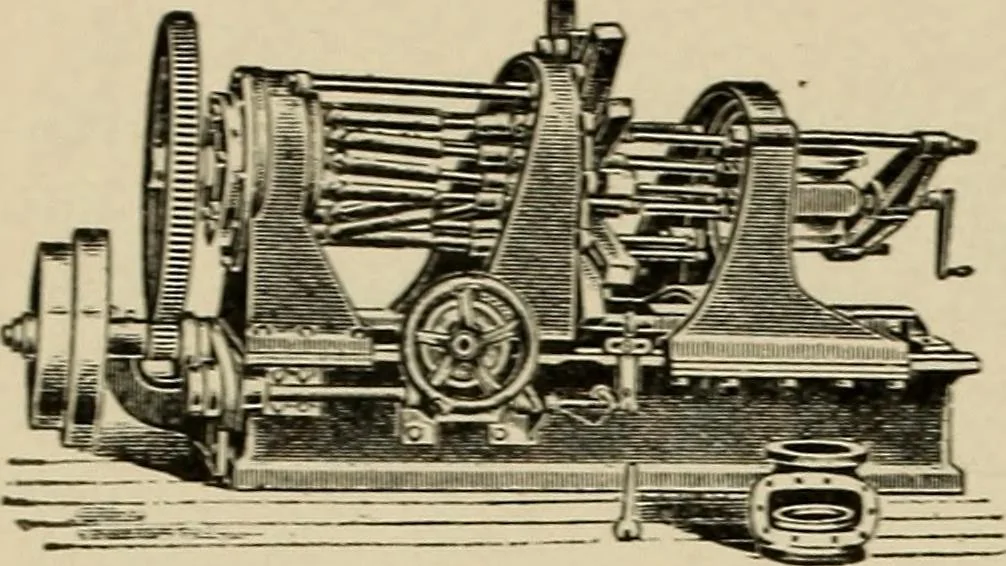

1358. PORTABLE DRILL, rope trans-mission and flexible shaft. One continuousrope over driving pulley, two double sheavesanchored, and flexible shaft pulley ; allow-ing the driving sheave of the flexible shaftto be anchored in any position, and fortightening the driving rope. 1359. MULTIPLE DRILLING… … 1360. MULTIPLE DRIL-LING MACHINE.—For drill-ing a number of holes in flangesat one time. The drill chucksare adjusted in a spider for anvsize circle and connected to thedriving head with jointed rods. u ^
Mechanical movements
