Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 377

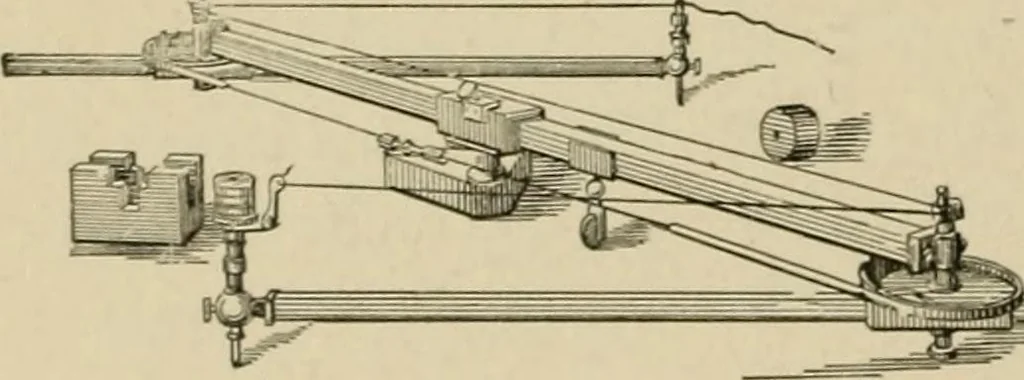

1531C. SECTION- LINERS.—Anopen triangle with a stop slide pivotedto links with the spacing adjusted bya stop pin and cam sector. … 1531J. EIDOGRAPH.—An instrument of precisionin reproducing drawings,reduced or enlarged. Sim-ultaneous motions are trans-mitted from the tracer to^ the pencil through the mo-tion of pulleys on the cen-tral beam operated by asteel band. DRAUGHTING DJEVICES. 369
