Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 385

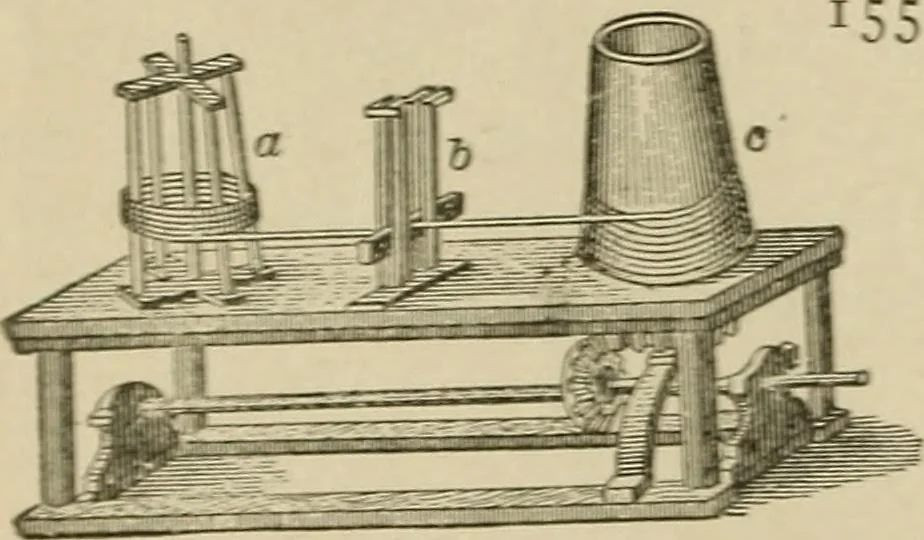

1556. LAPIDAPvY OR LITHOLOGICALLATHE for amateur work. A vertical spindlewith disc lap of lead, driven by a bevel gear andcranks, through a vertical shaft pulley and beltA splitting disc and spindle are also driven fromthe main pulley. DO/ … . WIRE-DRAWING MACHINE. a, the reel. ^, draw plate. i-, power drum, operated by gearbeneath the bench. WTien the wireis all wound on the drum it ischansred to the reel and d^a\^^l ina reverse direction. a - \ 1 ^ h 1558. WIRE-COVERING MACHINE.—The wire is passed through a hollow re-volnng spindle…
