Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 386

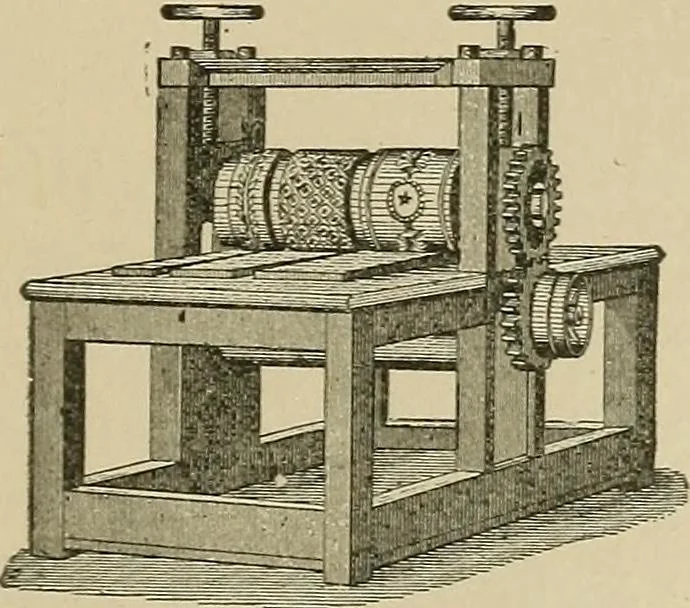

1560. SECTOR WHEEL BALING PRESS.—The large sectorsare operated by the long shaft and worm gears. The double togglejoints and small sector gears extend the toggle bars with increasingpower, 1561. WOOD COMPRESSIONCARVING MACHINE.-The carvedpatterns are iron rings placed on a hol-low iron cylinder…
