Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 402

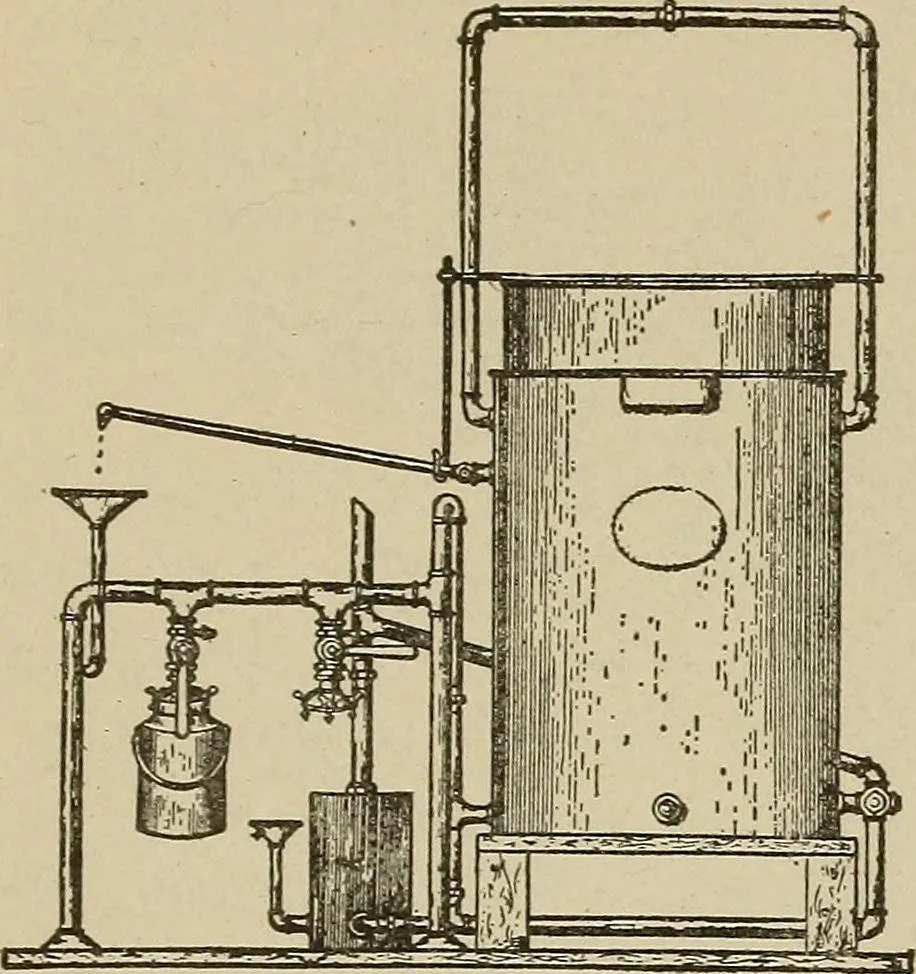

1632. AUTOMATIC GASOLINE ANDMANTLE LAMP.—The gasoline flowsfrom the reser\-oir to the D-shaped \apor-izer, regulated by a needle valve. Thevaporizer over the lamp chimney generatesa vapor pressure. The gas vapor is jettedinto the opposite tube, mixing with air andproducing an air vapor gas, which… … 1634. ACETYLENE GENER-ATOR AND GAS HOLDER.—The carbide is charged into thesmall vessel suspended from thecross pipe, with a stopcock above.A connection for a second carbidevessel is also seen. Water fromthe holder runs through a jointedpipe and drips into the sealed fun-nel. The water nozzle is…
Mechanical movements
