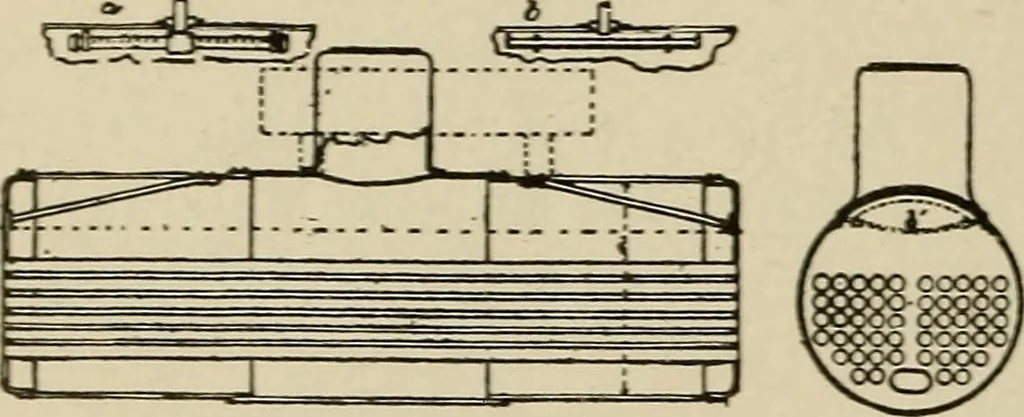

176. INTERNALLYFIRED FLUE BOILER. —The flue and half theshell surface, if exposedto heat, divided by 14,equals horse-power. 177. HORIZONTALTUBULAR BOILER,with steam and dn steampipe. c7, Dr}- steam pipe.One-half the shell and allthe tube surface, .dividedby 14, equals the boilerhorse-power.Mechanical movements
