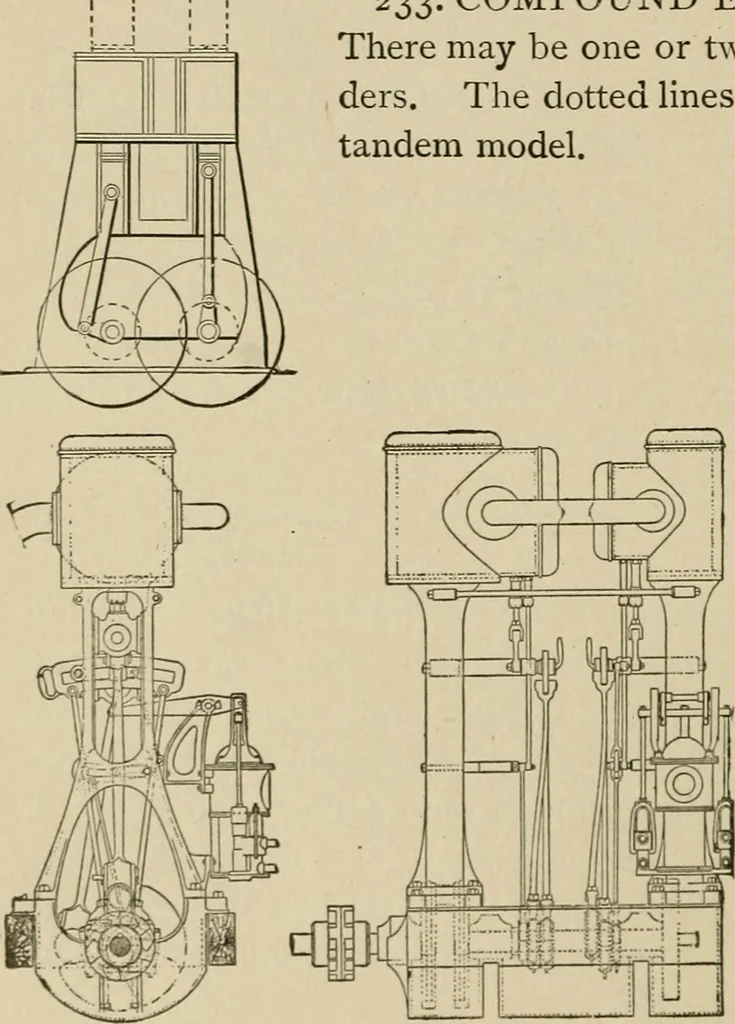

232. TANDEM COMPOUND VERTICALENGINE, with cross-head and two piston rodsfor low-pressure piston ^^ f^ 233. COMPOUND ENGINES fort^vin screws.There may be one or two pair of compound cyUn-ders. The dotted lines represent cylinders of thetandem model. … 234. COMPOUND YACHT ENGINE, Her- reshoff model. Direct receiver pipe. End and longitudinal elevation. STEAM POWER. 71
