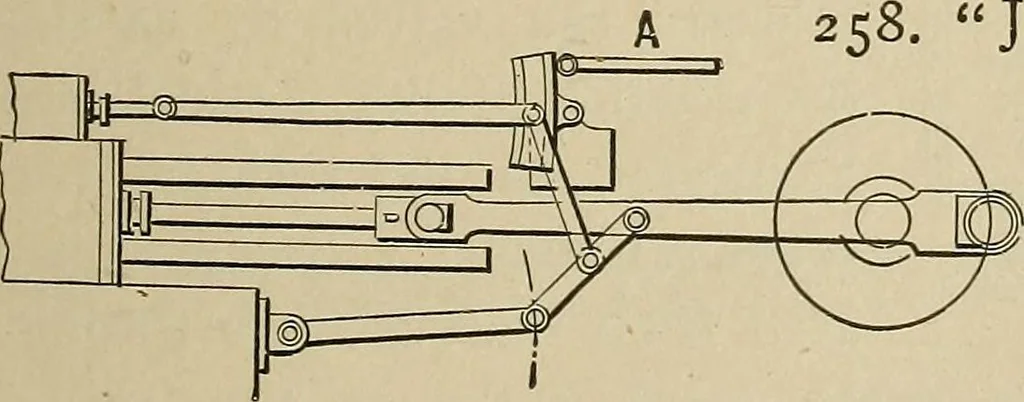

257. JOYS VALVE GEAR for a ver-tical engine. Operated from a pin in theconnecting rod. Reversal is made by chang-ing the position of the slotted link … JOYS VALVE GEAR for ahorizontal engine. Adjust-ment is made by the angu-lar position of the slottedlink. Valve motion by crankrod and links. 76 STEAM POWER.
