Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 107

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 107

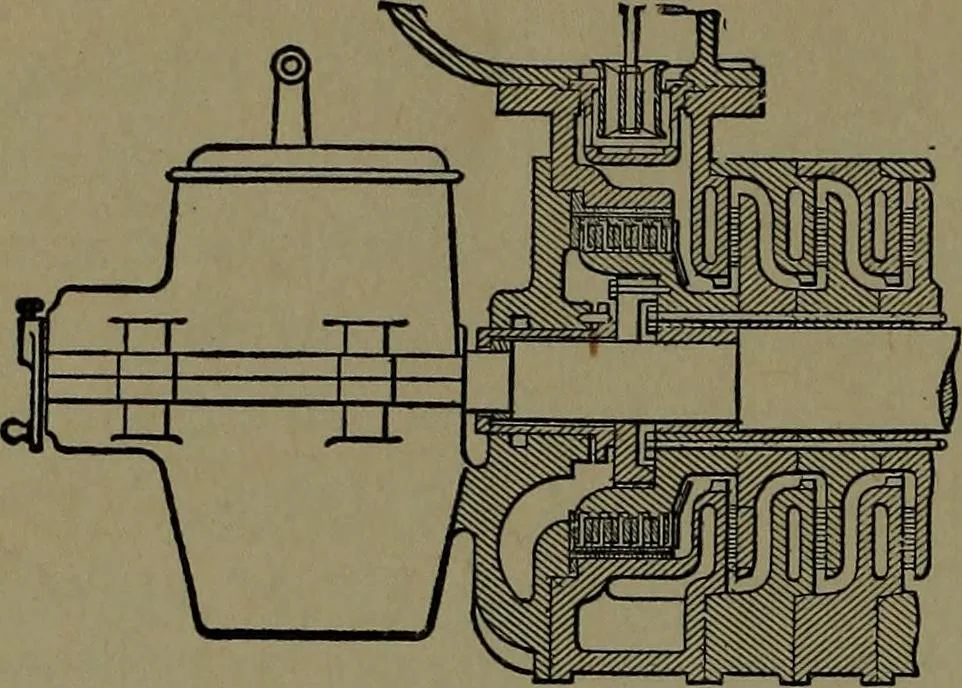

g nozzle at side ofwheel. too STEAM POWER. 371. PARSONS STEAMTURBINE. —A series of discsfixed on a shaft with intersectingdiscs on the shell. The face of theshaft discs has several small bladesset at an angle with the radius.The outside fixed disks have a sim-ilar set of blades interlocking withthe… … pair and outward again.
