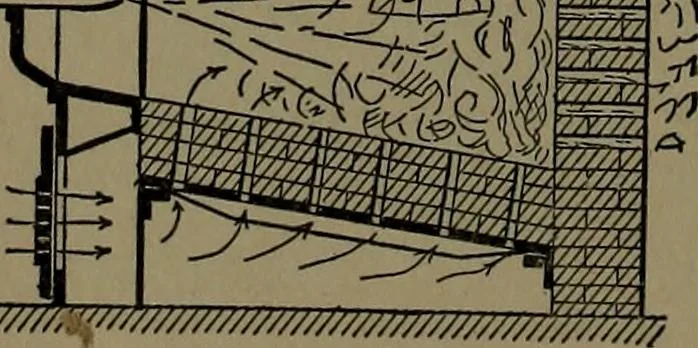

371a. CRUDE PETROLEUMBURNER with concentric fixed noz-zles. One of many varieties in use.I, oil feed; 2, steam feed; 3, air inlet.Further air regulation is made outsidethe nozzles. 371&. THE HAMMEL CRUDEOIL BURNER. Gives a broad flame. A, oil supply; B, steam supply; C,mixing chamber. E, steam… … .71 371C. PETROLEUM FUR-NACE.—For the most perfectcombustion of crude petroleumthe furnace should have a per-forated back wall and grate offire brick, which becomes highlyheated and thus completes thecombustion of the oil. STEAM POWER. ioi
