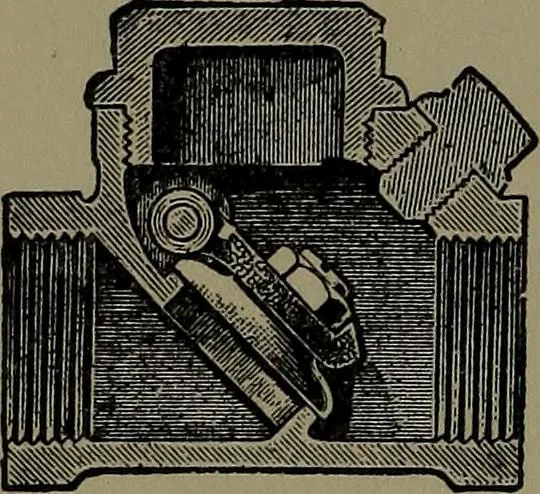

417. AUTOMATIC RELIEF VALVE.—Thevalve is kept closed by a crank attachment to thespindle and weighted lever outside. Excess of press-ure raises the stem and discs, throttling the passageof steam and relieving the back pressure. … 418. HORIZONTAL SWING CHECKVALVE.—The disc is loose in the swingframe and may be reground tight by a socketwrench passed through the plug opening.
