Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 139

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 139

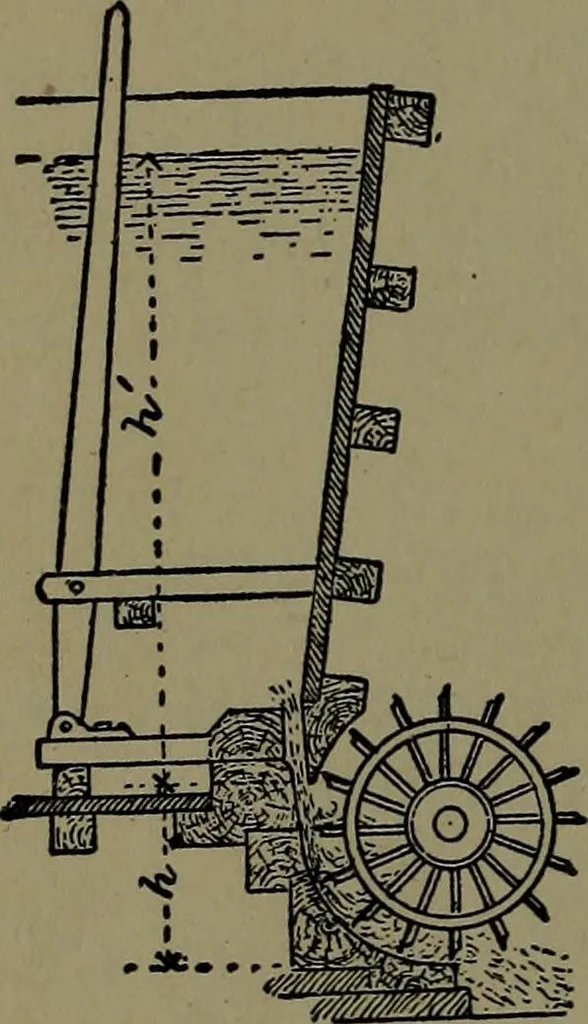

468. UNDERSHOT WATER WHEEL.— Power equals about forty per cent, of the valueof the water-fall flowing under the gate. … 469. SAW-MILL WATER WHEEL and flume, h -\- h represents the head of water.The total head in feet multiplied by the weightof water discharged per minute equals the foot-pounds of power. Efficiency about sixty percent.
