Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 142

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 142

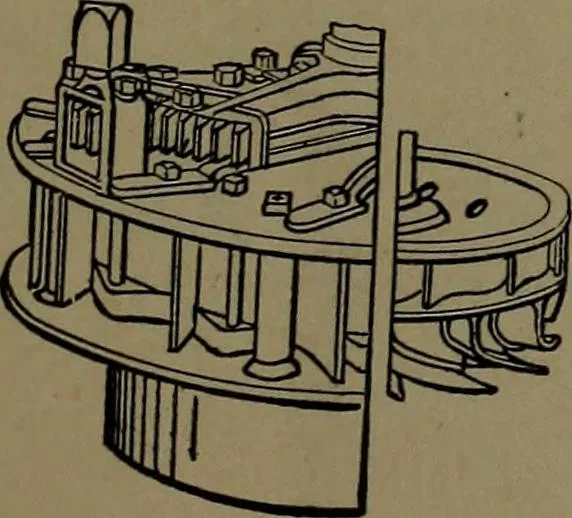

ft con-veys the water to an elevated trough. 483. VOLUTE TURBINE.—The water,under pressure of its head, passes along thevolute, striking the radial buckets a^ a^ a, flowsinward and down through the central inclinedbuckets ^, c. Efliciency abou^ eighty per cent. 484. HIGH-PRESSURE TURBINE, « Leffel… … 485. LEFFEL DOUBLE-RUNNER TUR-BINE.—The upper section of the running-wheeldischarges inward and down the centre. Thelower section has curved blades to dischargedownward. One register gate for both sections. i$6 HYDRAULIC POWER AND DEVICES.
