Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 145

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 145

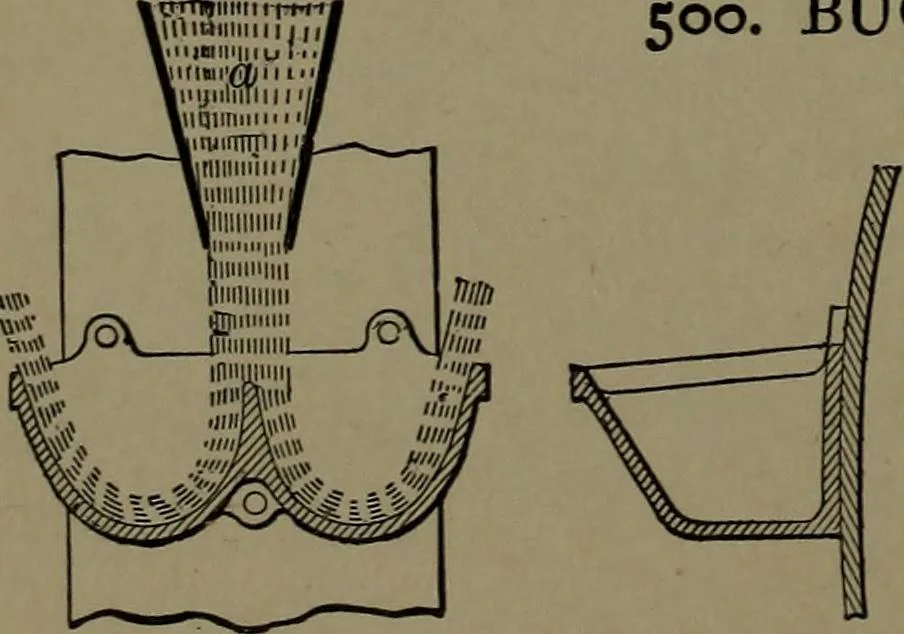

499. PELTON WATER WHEEL.—An impact wheel driven by the forceof a high-pressure water jet.Efiiciency, eighty-five per cent, ofthe product of the height andweight of flowing water throughthe jet, less the friction head. … BUCKETS OF A PELTON WATERWHEEL.—Showing the method ofseparating the jet and returning theparts nearly in line with the impactjet, thus gaining about eighty-fiveper cent, of the total power of the jet. 501. Section of bucket. HYDRAULIC POWER AND DEVICES. 139

Mechanical movements
