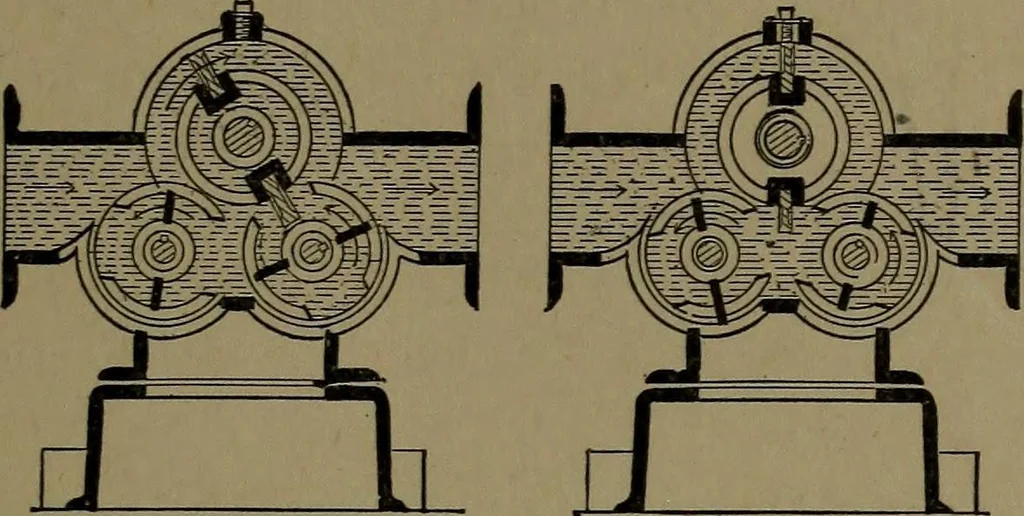

HYDRAULIC POWER AND DEVICES. i4i 532-533- TRI-AXIALROTARY PUMP.—Alate French invention. Theupper cylinder receives thepower and rotates the lower ^ chambered cylinder?-j through three spur gears.The wings of the upper orpower cylinder are set fast and are the only rubbing surfaces. Thecylindrical…
