Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 157

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 157

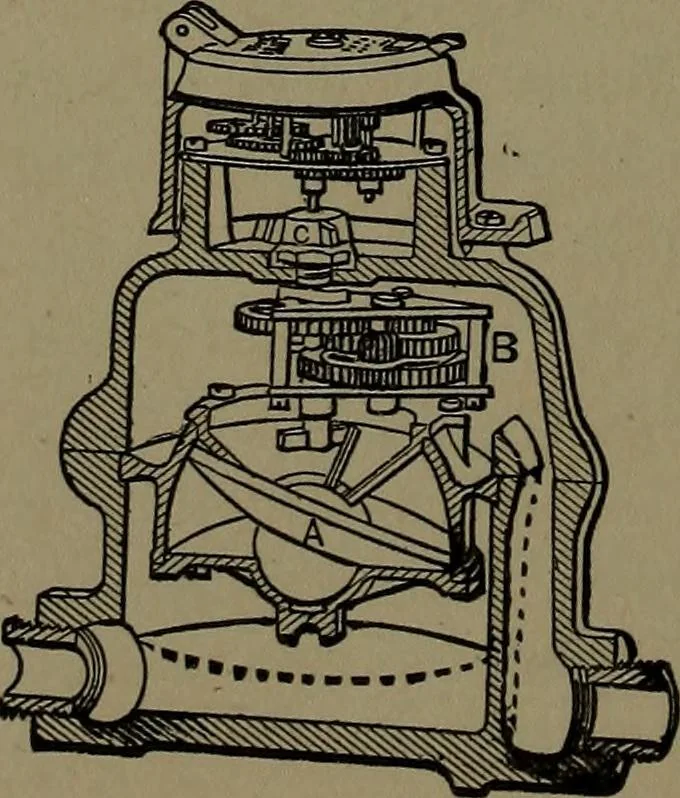

556. WATER METER.— Union water me*ter model. The water passes through a rotarymotor with equalizing gear, from which the dialpointers are driven by a clock train and counter. … 557. DISC WATER METER, « Hersey model. The disc piston. A, oscillates by thepassage of water through the disc chamber.The spindle of the disc, by its oscillatingmovement, rotates the crank and gears of theindex-wheel train. HYDRAULIC POWER AND DEVICES. 151
