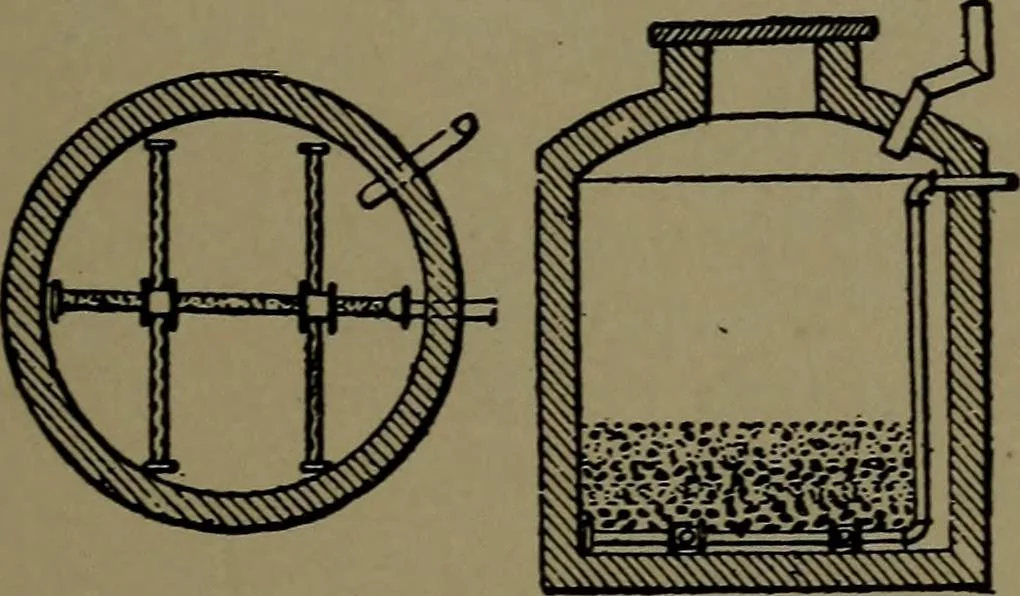

REVERSIBLE FILTER—The position of the filter in the cut is for filter-ing downward. By turning it overon the trunnions it can be cleanedfrom above downward, whichclears it of all sediment. The in-flow is from above and the wasteis through the trunnions to the^O sewer while cleaning. … 575. FILTERING CIS-TERN, plan. 576. Section. The pump pipeextends to the bottom of thecistern and across, with lateralbranches. The pipes on the bot-tom to be perforated with one-sixteenth inch holes, enough to give a free flow of water to the pumps.Cover the pipes with sifted gravel larger than…
