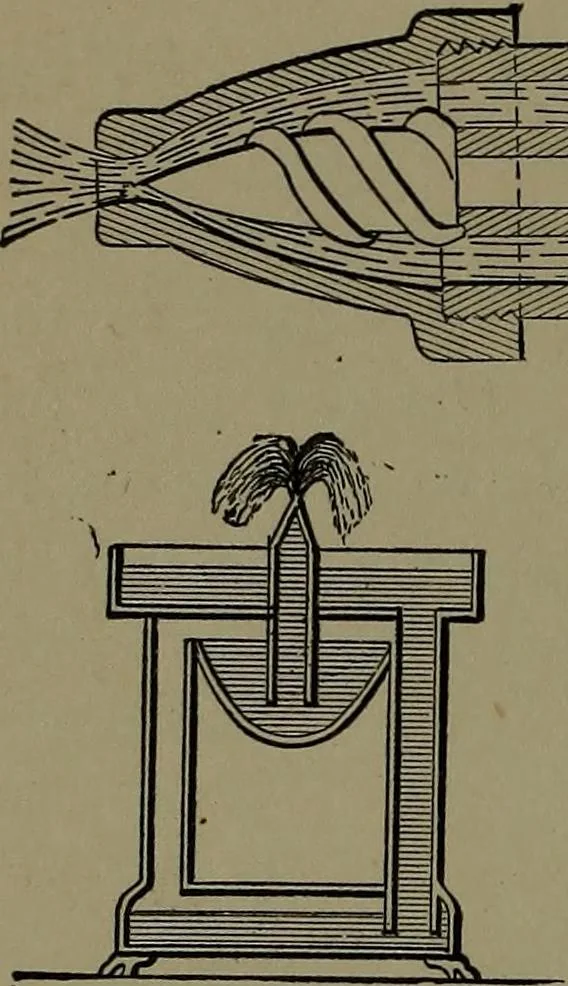

606. BALL AND JET NOZZLE.—The ball is heldin contact with the jet by the adhesion of the water tothe rolling surface. The ball should be very light. Theprinciple is the same for an air jet, only that a very lightball must be used. With the low ball in the conicalnozzle the ball can lift no higher… … ^^^ ral 607. SPRAY JET NOZZLK^The spi- wmgs on the central cone set the _\ J water into a whirl, and induce a spray by-^^^^ centrifugal action.
