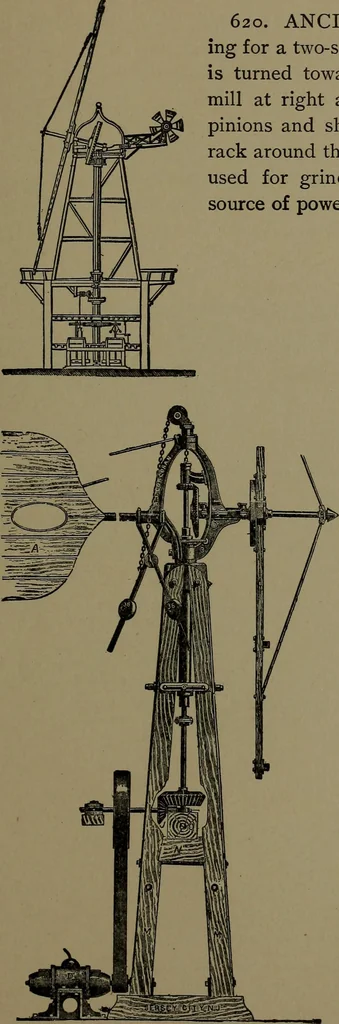

EEL TOWER.— Mill with a single series of blades. The tail-pieceis pivoted to the mill-head, and is swung around toturn the face of the mill from the wind by a governor. 619. MODERN WINDMILL.—Two series of concentric blades fastened to thepurlines of a braced radial frame. Theblades are jEixed at an… … 620. ANCIENT WINDMILL and gear*ing for a two-stone flour mill. The windmillis turned toward the wind by a small wind-mill at right angles on the tail frame, withpinions and shaft connecting with a circularrack around the revolving dome. These mills,used for grinding grain, are the principalsource…
