Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 177

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 177

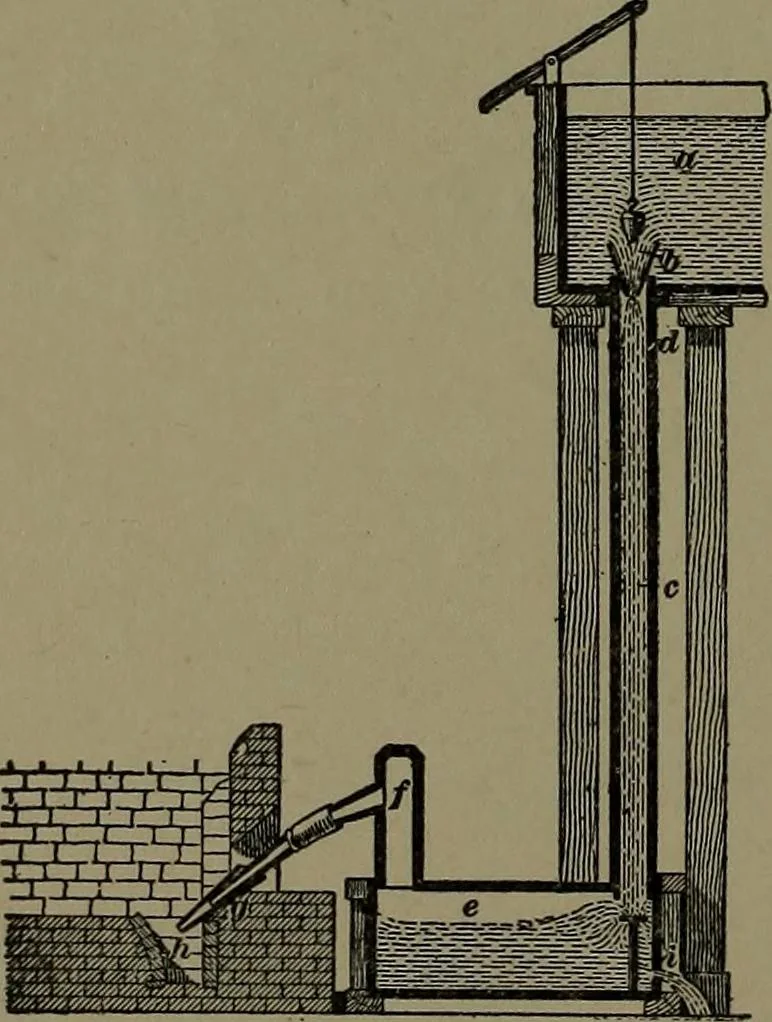

633. PISTON HYDRAULICAIR COMPRESSOR, Dubois &Francois model. Water was con-stantly injected into the cylinderto cool the air, the excess beingdischarged through the air valves.An early type. … 634. TROMPE OR HYDRAULICAIR BLAST.—One of the early devicesfor furnishing an air blast to a forge.The falling column of water draws in airthrough the small inclined orifices at d^carrying it into the reservoir e, where itseparates, and is discharged through thetuyere pipe at b. The outlet at /…
