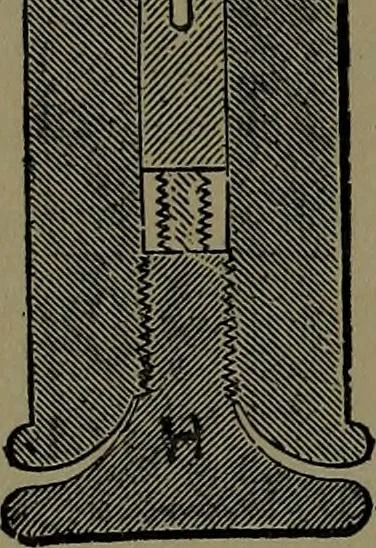

735. TELEPHONE TRANS-MITTER.—A, A, thin irondiaphragm ; B, india rubber in con-tact with diaphragm and the ivorydisc, C; D, platinum foil betweenthe ivory disc, C, and the carbon disc,E; G, disc and screw for adjust-ment of carbon contact; H, ad-justing screw for diaphragm con-tact.
