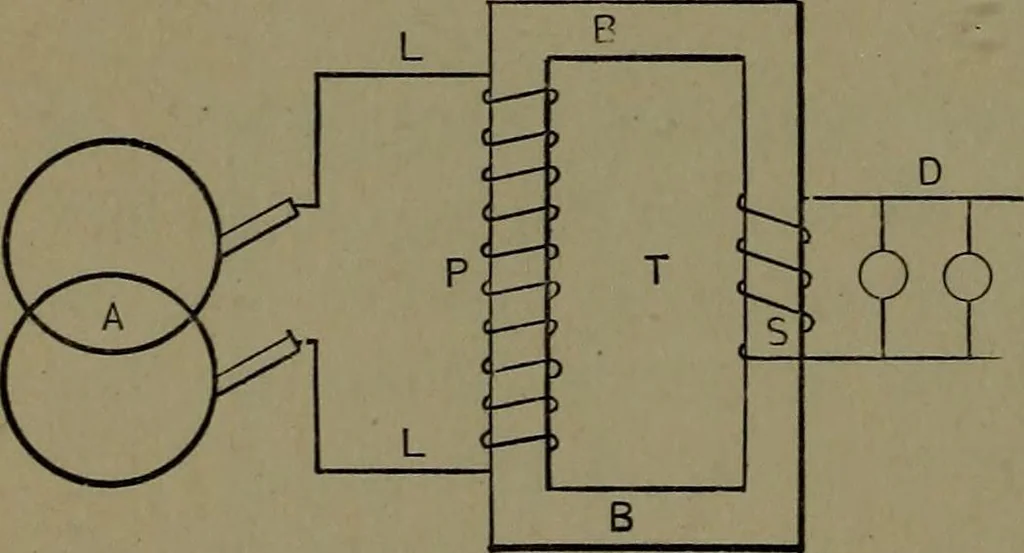

759/. SOLENOID ELECTRIC FAN.—A circular magnet attached to a pivoted armand fan blade, oscillates within two electriccoils by the alternate make and break of thecircuit from the battery by the contact fin-gers and studs. Requires no switch; sim-ply stopping or starting the fan blade putsit out and… … 759^^. ALTERNATING CUR-RENT TRANSFORMER.—L, L, main lines from dynamo A;P, primary coil of small wire andmany turns; B, iron magnet corewhich may be made of strips ofsheet iron or iron wire; S, induc-tion coil of large wire and fewturns; D, lamp circuit. Practi-cally both coils are wound onthe same…
