Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 215

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 215

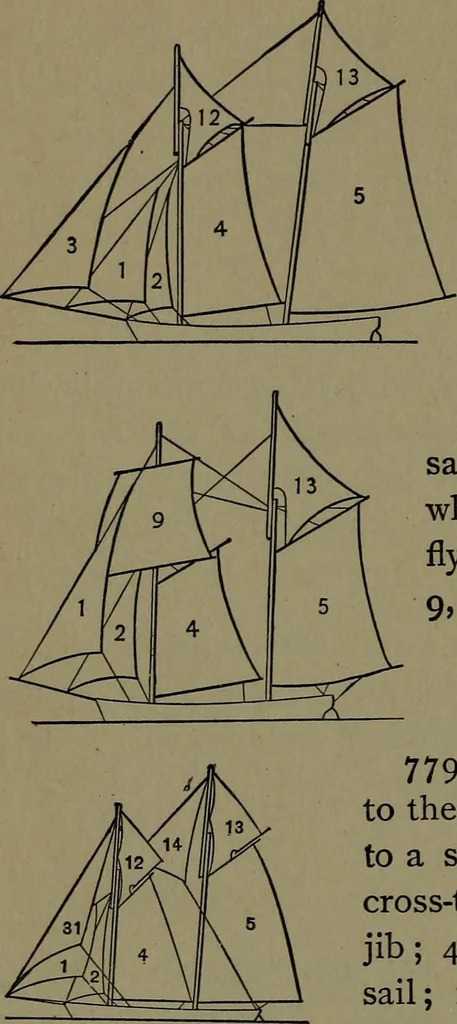

OPSAIL SLOOP.—A mainsail, two jibs and jib-topsail. The topsail is runup the topmast and extended on the gaff.Main jib-stay from masthead to bow. Forejib-stay from topmast to bowsprit. i, flying-jib; 2, jib; 5, mainsail; 13, gaff-topsail. 775. THE CUTTER.—A mainsail, 5 ; jib,2 ; flying-jib, i, and… … 777. FULL SCHOONER RIG— Main- and fore-sail, two or three jibs,and two topsails, i, flying-jib ; 2, jib?3, fore top staysail; 4, foresail; 5, maitt-sail; 12, fore gaff-topsail; 13, maingaff-topsail. 778. TOPSAIL SCHOONER. —The same rig as a schooner, except the foretop,which is a square sail bent…
