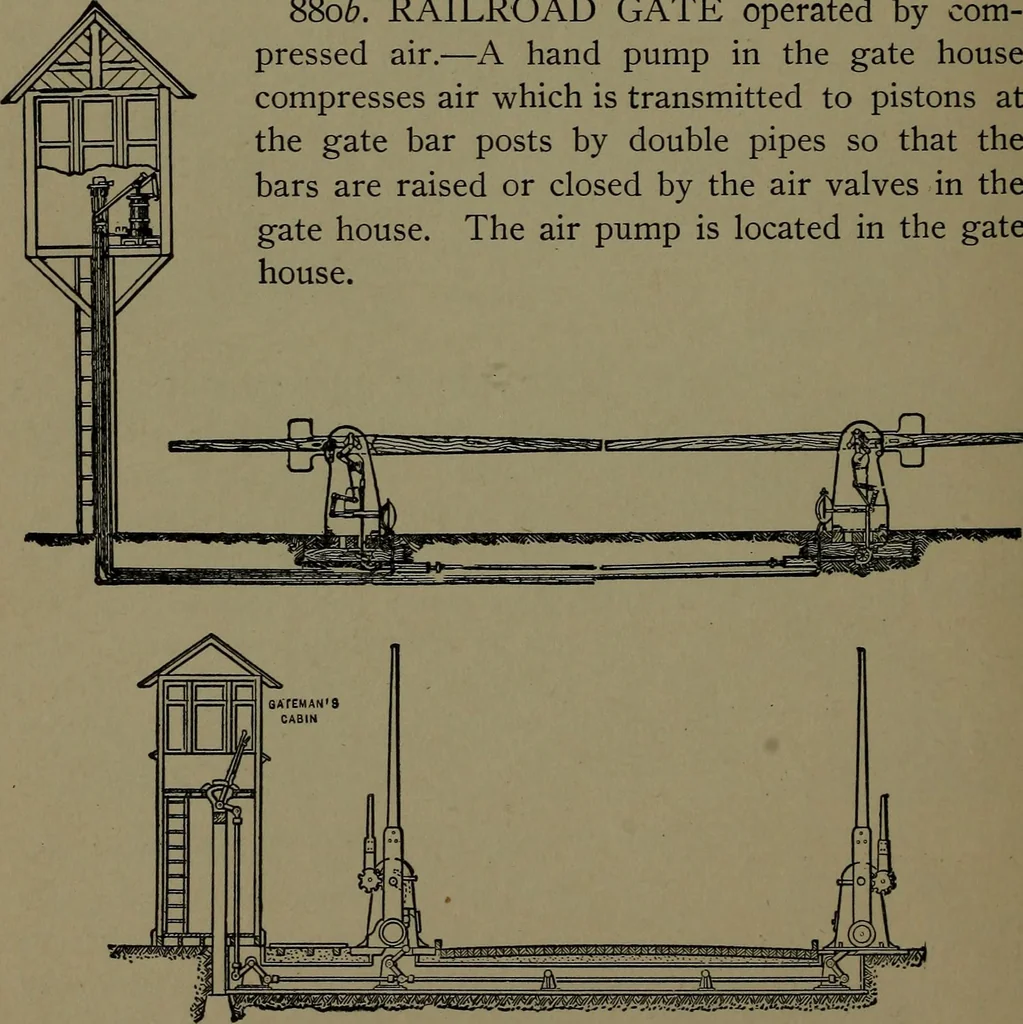

88oa. AIR SHIP.—General form of those inuse that have had any suc-cess. Too many come togrief and they should be awarning to the ambitioussoarer, to learn what hispredecessors have done. SSob. RAILROAD GATE operated by com-pressed air.—A hand pump in the gate housecompresses air which is… … aafb^/jjJiiWAtjP^^ 88oc. RAILROAD CROSSING GATE.—A lever in the gatehouse operates the gate arms by a series of bell cranks linked to-gether and to sectors in the gate arm boxes. A small lever andsector at each arm to close the foot walk. NAVIGATION AND ROADS. 227
