Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 258

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 258

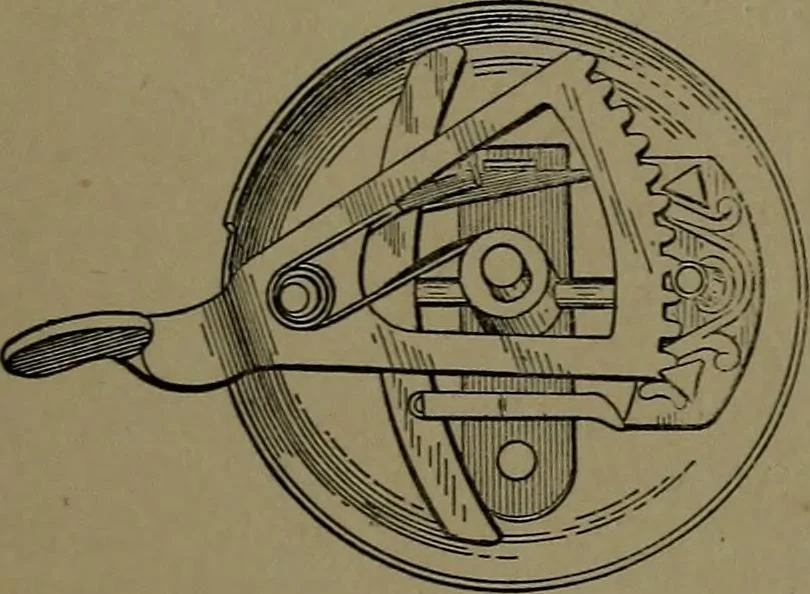

992a. LINK CHAIN HOIST.—A novel formof light weight hoists over lathes and planers.A screw gear working in a tooth chain. … gg2h. BICYCLE SIGNALBELL.—A gear sector lever oper-ates a pallet vibrator, which is heldin a central position by a spring.The sector is also held ready for asignal stroke by a spring. 992c. MULTIPLE SPEED GEAR, or paradox box.—Thebevel gears A, A, A, are fixed to box and studs 5 and 6. C, C are…
