Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 265

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 265

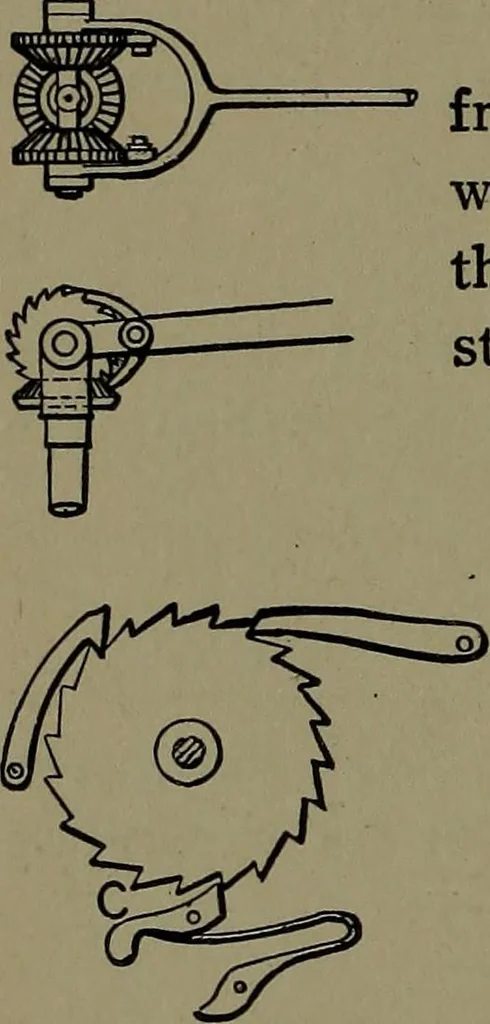

1021. BALL SOCKET RATCHET.—Thepawl is within the arm socket, and by the ballratchet form allows the drill stock to be used atan angle. … 1022. CONTINUOUS MOTION RATCHETfrom an oscillating arm. Three bevel gears, two ofwhich have ratchets with pawls on opposite sides, sothat there is a forward motion to the spindle at eachstroke of the arm. 1022 a. Elevation. 1023. STOPS OF VARIOUS FORMS fora ratchet wheel. Hook and straight gravity…
