Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 284

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 284

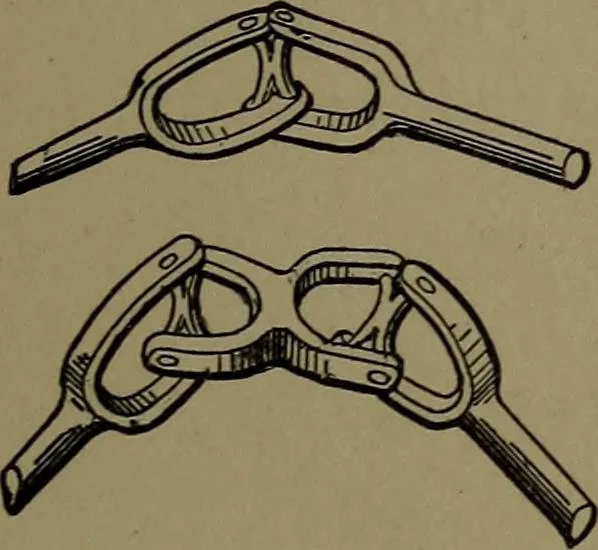

1130. RECTILINEAR MOTION fromthe rotation of an angular crank pin. A,rotating shaft carrying crank pin E; D,arm with sleeve jointed to yoke and slidingrod B. 1131. ANGULAR SHAFT COUPLING for shafts out of line. The solid sleeve blockC is bored at the same angle of the shafts,and centres of bores at… … 1132. UNIVERSAL JOINT, with a singlecross link. Good for angles of 45° and under. 1133. DOUBLE LINK UNIVERSALJOINT, good for larger angles than above.The connecting link may be made short andguarded, with a sleeve to prevent kinking.

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
