Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917) Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 310

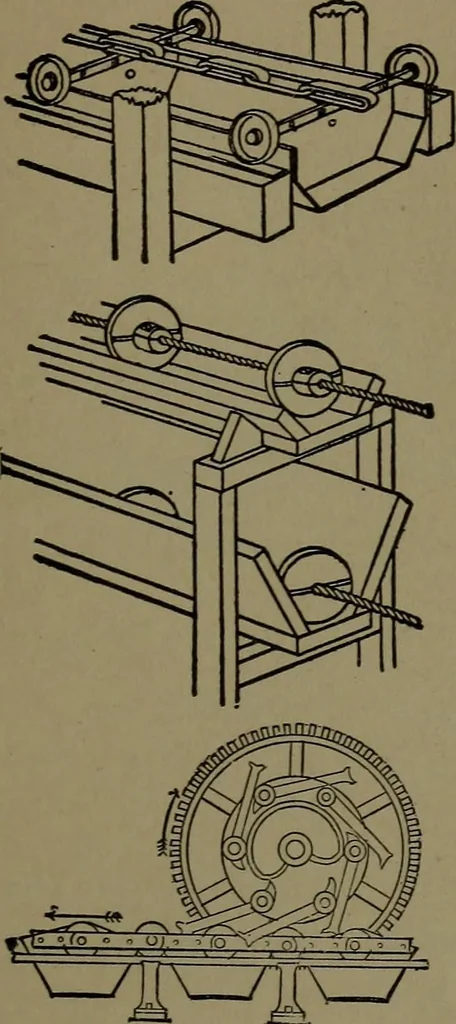

MINING BUCKETSAND SKIP. 1220. d^ Cornish kibble.©))) [ 12 21. ^, Hooped straight\ bucket. f 1222. b^ Water bucket.^^=^ 1223. ^, Tram skip. 1224. BELT CONVEYOR.—A seriesof horizontal and inclined rollers serve toturn up the edges of a belt, enabling thematerial carried to be retained on the belt;the… … 1225. CHAIN SCRAPER CON-VEYOR.—A chain supported on rollersand axles to which scrapers are fixedthat fit the conveyor trough. 1226. CABLE CONVEYOR.—Discsfixed to a cable running in a trough andreturning overhead. again into position for their next push. 1227. DRIVING MECHANISM for acoal or grain… Mechanical movements
