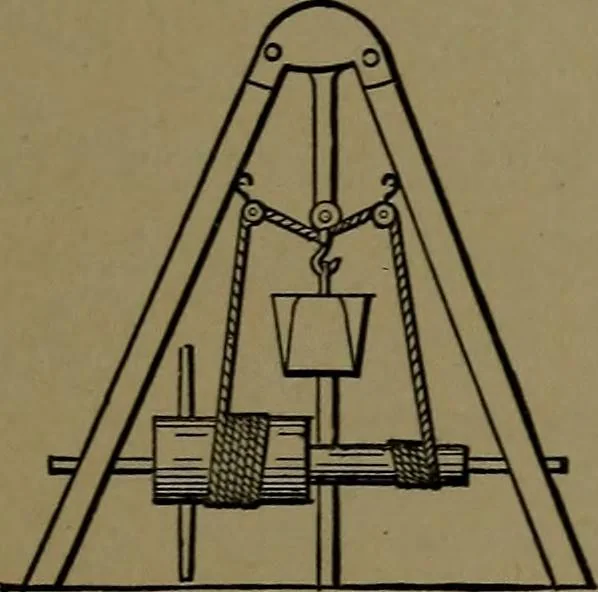

40. CHINESE WINDLASS.—The sheave and hook rises equal to one-half the difference in the circumference of the barrels for each i=> turn of the crank. See No. 27 for the power.
