Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 348

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 348

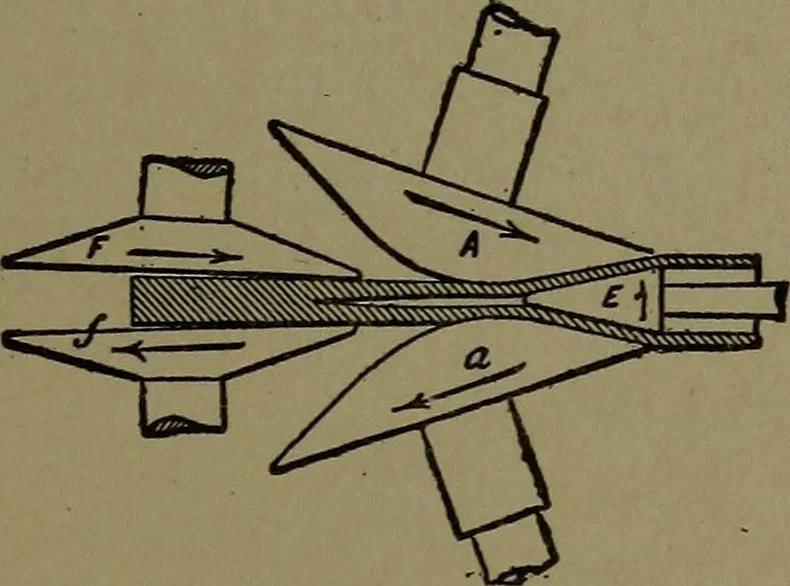

a 1419. TUBE-ROLLING MA- CHINE.—The first roller turns ther T I strip of metal to a half-circle. TheT—J pair of vertical rolls close up the J tube. … 1420. SEAMLESS TUBE MAK-ING.— Rolling a solid bar between apair of angular-axled disc rollers opensa cavity within the bar which is furtherexpanded by a second pair of disc rollers.The rolling of the tube between the discspushes the tubular bar over a revolvingconical mandrill. 1421. WIRE-BENDING…

Mechanical movements
