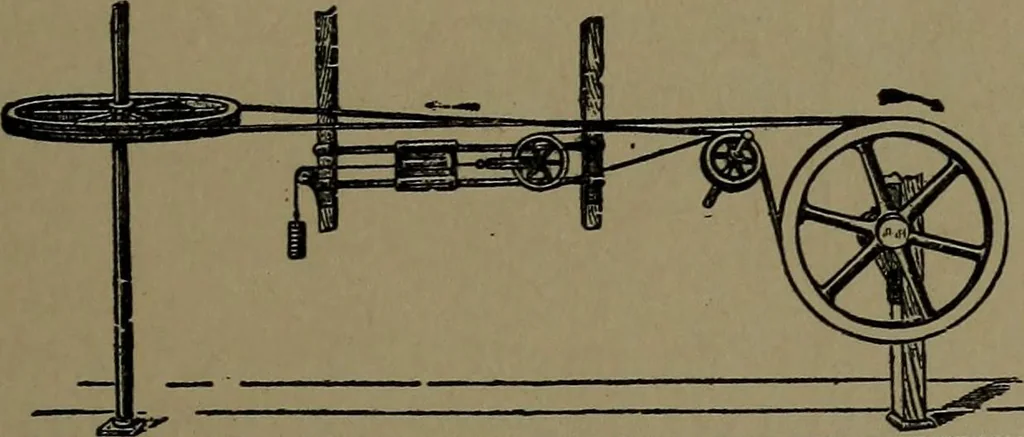

61. HORIZONTAL ROPE TRANSMISSION, with tensionslide and weight. … 62. ROPE TRANS-MISSION from verticalto horizontal shaft, withtension slide and weight
