Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 38

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 38

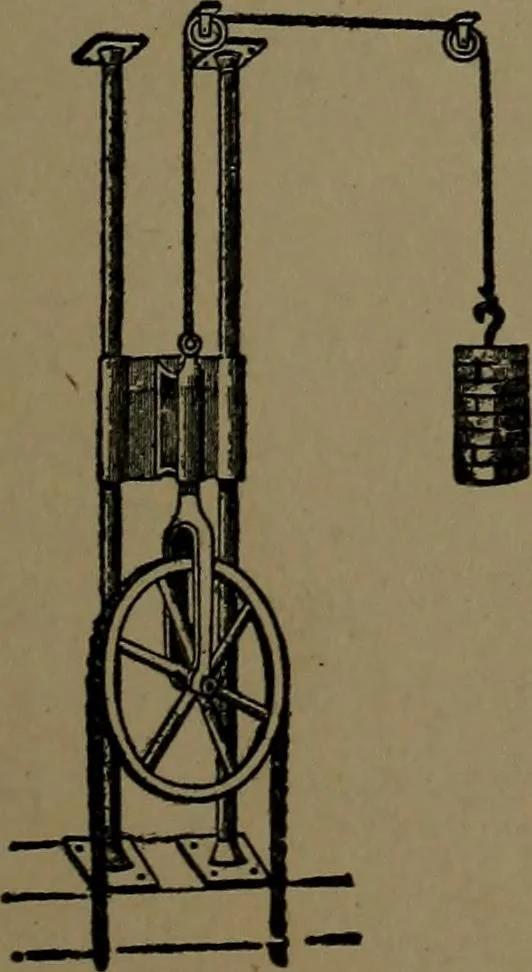

63. ROPE TRANS-MISSION to a movableshaft at right anglesfrom the driving-shaft,^,^with tension slide andweight. … 64. VERTICAL TENSION with slides and pulley guide. CARRIAGE, 32 TRANSMISSION OF POWER.
