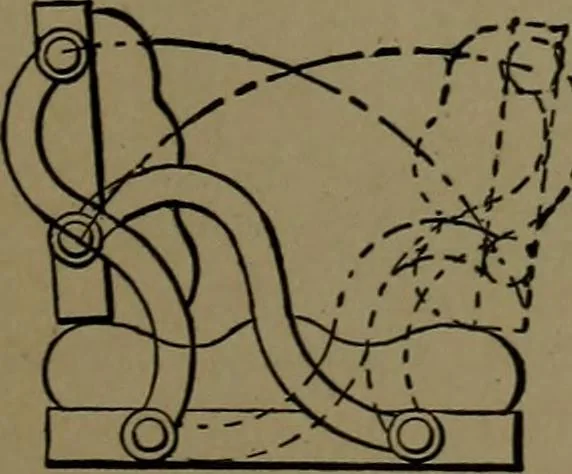

1599. CABLE GRIP FORSTREET RAILWAYS.—^,b^ grip jaws and blocks; <r,pull-up to throw the cable outof the jaws; d^ d, frameplates; e, grip plate connectedto b^ and operated by the bellcrank levers g, g\f,f, pull-upattached to frame and dis-engaging pieces c, c. 1600. End view of grip. … T0 ^ V . I) seat backs. 1601. LINKED HINGES for reversingcai 25 386 MISCELLANEOUS DEVICES.
