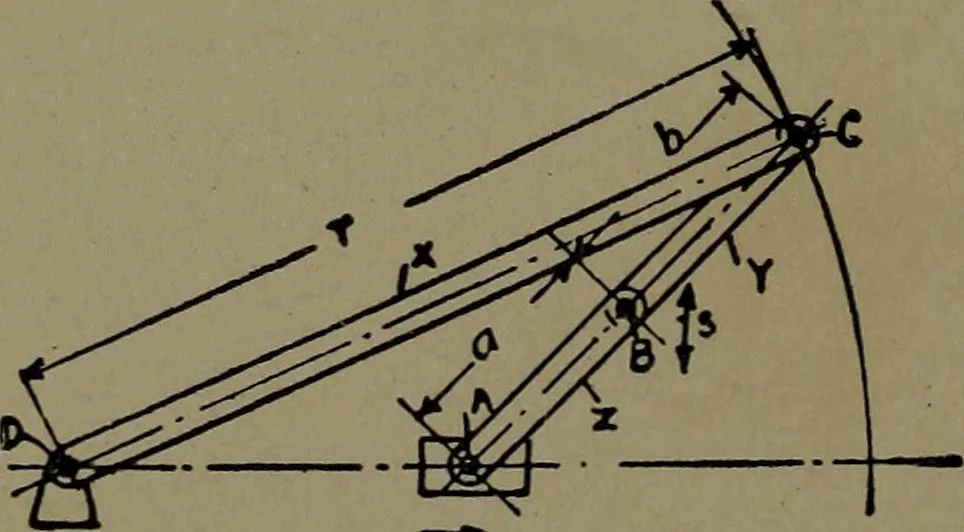

1655. STRAIGHT … LINE MOTION WITH ONELEVER AND TWO LINKS.—Lever X is connected to a slid-ing link Z by a link F. X ispivoted at D and connected tolever F at C F is connectedto Z at C and Z at B. Z is con-nected to F at 5 and to a slid- ing guide at A. The point B moves in a straight line. STRAIGHT LINE MOVEMENTS.…
