Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 42

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 42

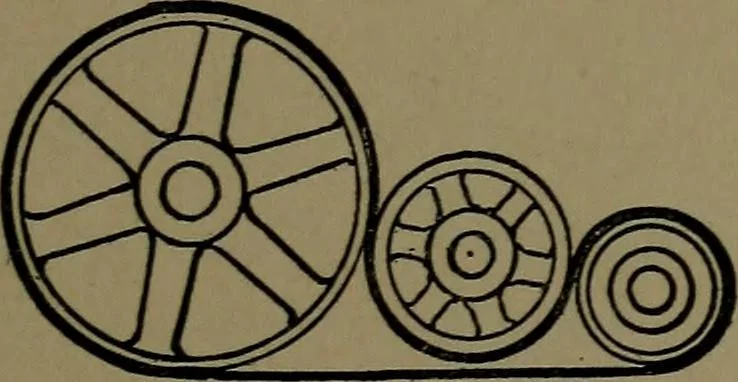

92. BELT TRANSMISSION, for short belt andclose connection. The belt is wrapped close to andpressed against the driven pulley by a tighteningpulley. For electric motor power or the driving ofgenerators. 93. BELT TRANSMISSION OFPOWER, at close range. A combinationof friction gear increased by belt… … 94. VARIABLE TRANS-MISSION OF MOTION,from an eccentric conicalpulley to a friction pulley.The riding pulley C traversesthe cone, which moves forward or backward by the rotation of thescrew in the nut stud E, producing a progressive variable motionin the pulley C, increasing or decreasing as the…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
