Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 60

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 60

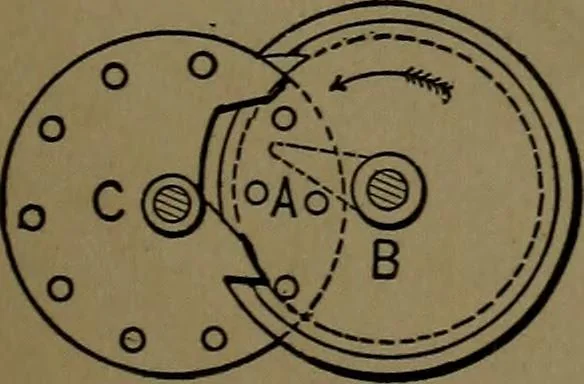

165. INTERMITTENT ROTARY MO-TION, for counters and meters. The tappetA, revolving with the wheel C, carries the wheelD one pin notch per revolution. The pawl bis released by the notch in the wheel C whilethe tappet is in contact with the pin. 166. INTERMITTENT ROTARY MO-TION, for counters and…
