Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 62

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 62

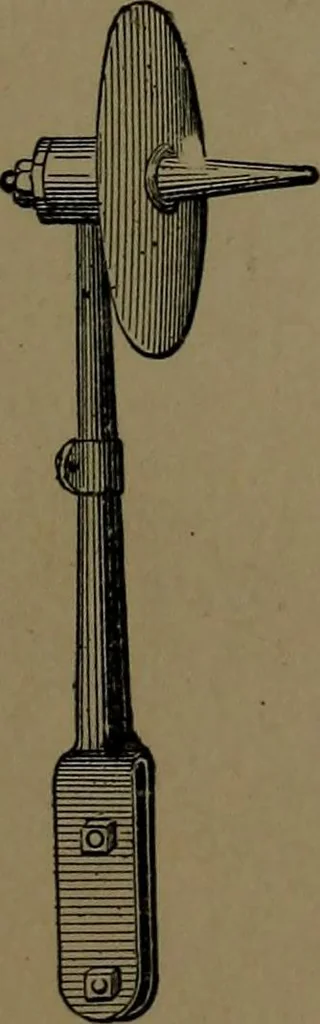

the projecting arm fromthe cylinder. See detailed figure. 171^7. DETAILS OF THE ST.JOHNS STEAM METER.—Thelifting of the conical valve by differ-ential pressure allows the requiredquantity of steam to pass through theannular area, which is the measure un-der the initial pressure. The valvelift is… … 171C. BELT SHIPPER.—A taper pinwith a flange at the large end and attachedto a pole. This handy device enables thethrowing of a belt off or on with safety. 56 MEASUREMENT OE POWER.
