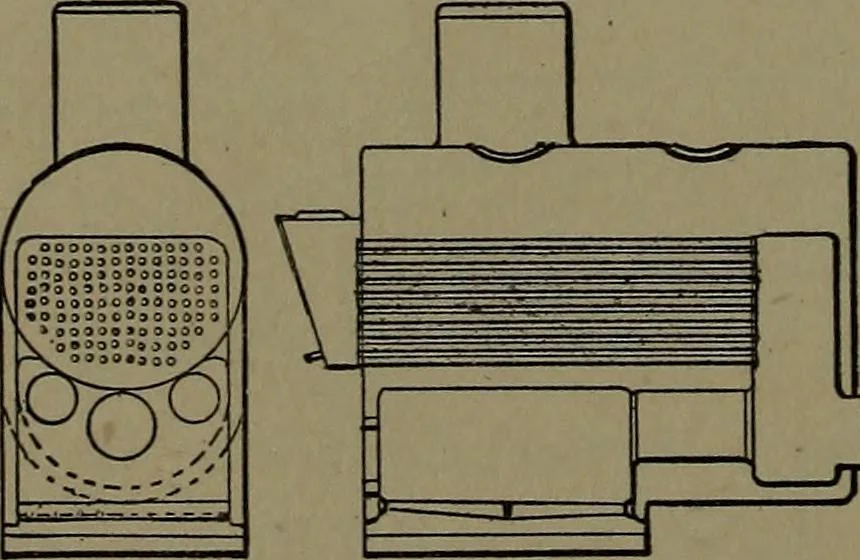

78. LOCOMOTIVE BOILER.— All the fire-box surfaceabove the grate andall the tube surface,divided by 14, equalsthe boiler horse-power. … 179. MARINE BOILER, withlocomotive fire-box, three flues andreturn tubes. The area of the fire-box, flues, back chamber, and tubes,divided by 12, equals boiler horse-power. m -■
