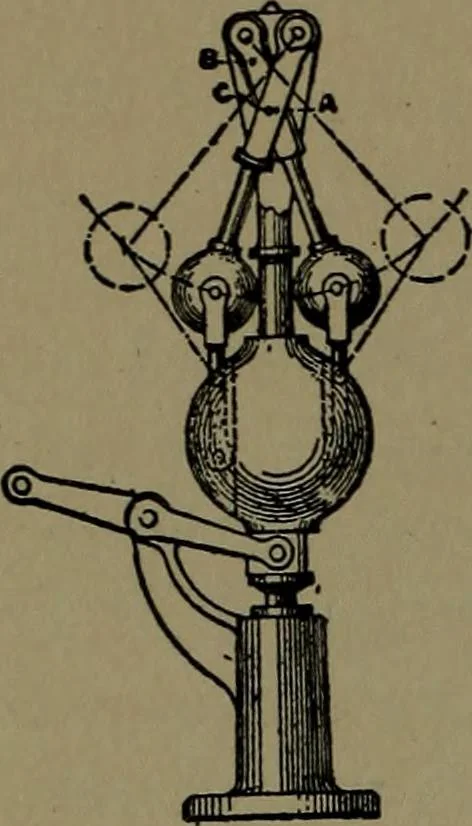

312. PORTER GOVERNOR.—The cen-trifugal balls lift a central weight, A, by thetoggle-arm connection. A high-speed governor. 88 STEAM POWER. … 313. RICHARDSON GOVERNOR.—The arms in this governor are crossed and sus-pended from two points, the balls lifting acentral weight by their pivoted connections.The groove on the lower extension of theweight operates the throttle.
