Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 98

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 98

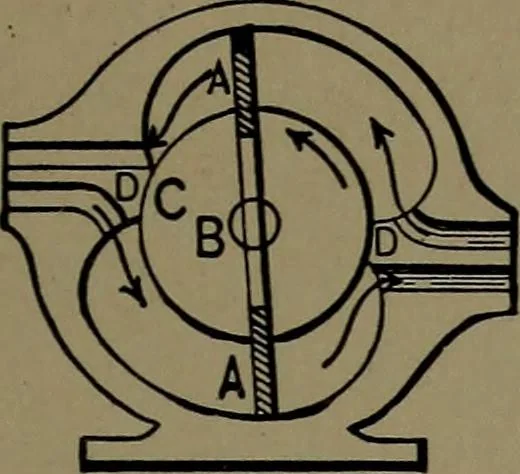

326. FRANCHOT ROTARY ENGINE.^A slotted concentric cylinder carries a con-tinuous solid wing across and in contact with theinterior surface of an ovoid shell, shaped for ex-act diameter in all directions on the eccentricaxis of revo ution. mmM/M/mMm. STEAM POWER. 91 … 327. DOUBLE SLIDE PISTON ROTARYENGINE.—In this engine the shaft and pistonbarrel are concentric, while the walls of the steamchambers are ovoid. A difl&cult form of con-struction.

Mechanical movements
