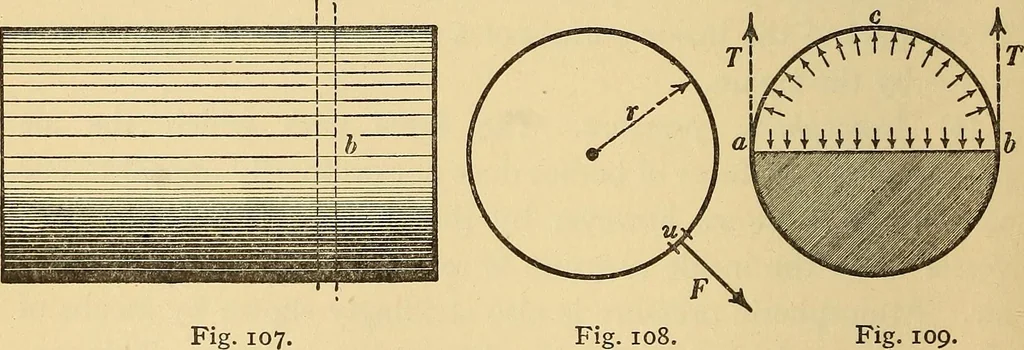

f about 14,000 tons upon the two plungers. Pascals principle. The force per unit area which is exertedby a fluid on an exposed surface at a given place in the fluid isindependent of the direction of the surface. Thus the air pushesagainst an exposed surface with about 15 pounds of force persquare… … Fig. 108. Fig. 109. tension in the material of the pipe. Consider a narrow band b,Fig. 107, of the material of a pipe, the width of the band beingone inch. An end view of this band is shown in Fig. 108, and,since the band is one inch wide, each inch of its circumference is HYDROSTATICS. 221 pushed…
