Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 184

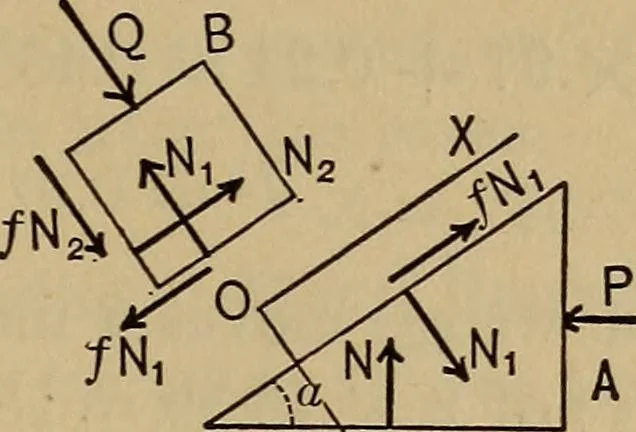

Fig. 173. Fig. 174. amount of the horizontal force P, at the head of the block A(or wedge), to overcome Q and the frictions. D is fixed, andab is perpendicular to cd. Here we have four unknowns, viz.>P, and the three pressures iV, N^ and N» between the blocks.Consider A and B as free bodies,…
