Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 239

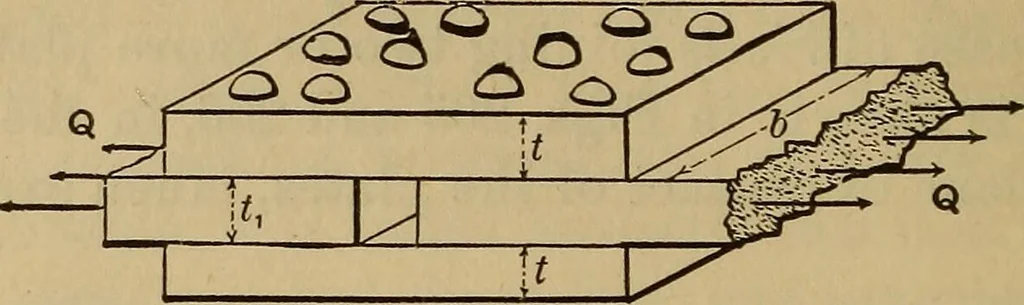

ered, see Fig. 206), P being the safe shearingforce for the rivet. Also the thickness t of the plateshould be such that the side of the hole shall be secureagainst crushing ; P must not be > Ctd, Fig. 205. Again, the distance a, Fig. 205, should be such as toprevent the tearing or shearing out… … Fig. 207. four modes just mentioned. The relations which mustthen subsist will be illustrated in the case of the butt-joint with two cover-plates, Fig. 207. Let the dimen-sions be denoted as in the figure and the total tensile forceon the joint be = Q. Each rivet (see also Fig. 206) is ex-posed in…
Mechanics, Applied · Engineering · Strength of materials
