Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)

Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 277

An illustration from Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc, 1888, leaf 277

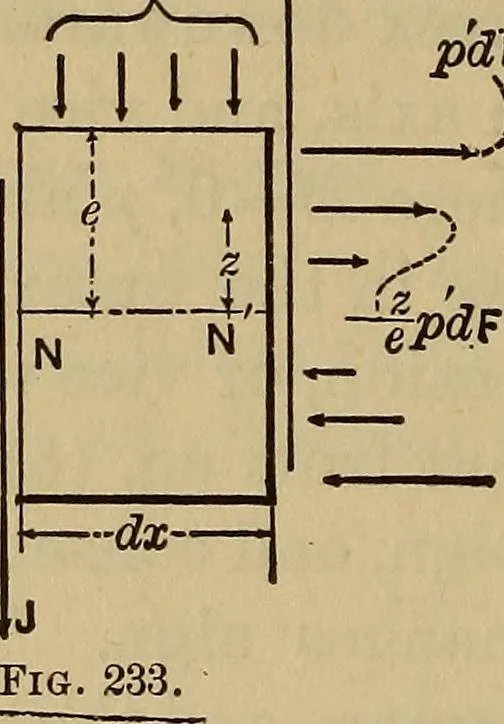

tical slice of the beam includedbetween any two consecutivevertical sections whose distanceapart is dx. The forces actingare the elastic forces of the twointernal surfaces now laid bare,and, possibly, a portion, wdx,of the loading, which at thispart of the beam has some intensity =w lbs. per… … £l-J^ + Jdx+wdx.^-=0 But Pl=M, the Moment of the left hand section,^- =ifcp,e e that of the right; whence we may write, after dividing through by dx and transposing, dM M—M T^ dx -d^=J+wT i.e.,- dx J; (3). for to % vanishes when added to the finite J, and M—M=dM= increment of the moment…
