Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 349

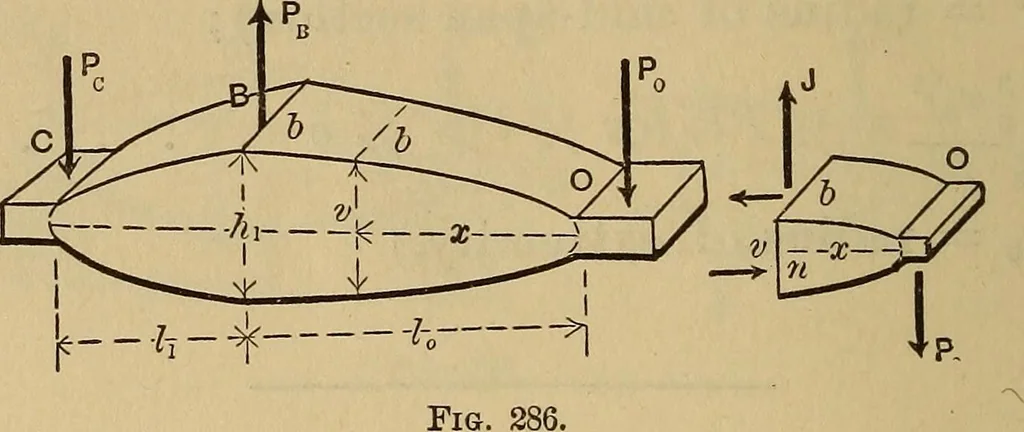

tress p in the outer fibres (thebeam being prismatic in that instance). In the following problems the weight of the beam itselfis neglected. The general method pursued will be to findan expression for the outer-fibre-stress p, at a definite sec-tion of the beam, where the dimensions of the section… … CBO is a working beam or lever, B being the fixed fulcrumor bearing. The force P0 being given we may compute Pcfrom the mom. equation P0l0 = Pclit while the fulcrumreaction is PB=P0+PC. All the forces are ~| to the beam.The beam is to have the same width b at all points, and isto be rectangular in…
Mechanics, Applied · Engineering · Strength of materials
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
