Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 377

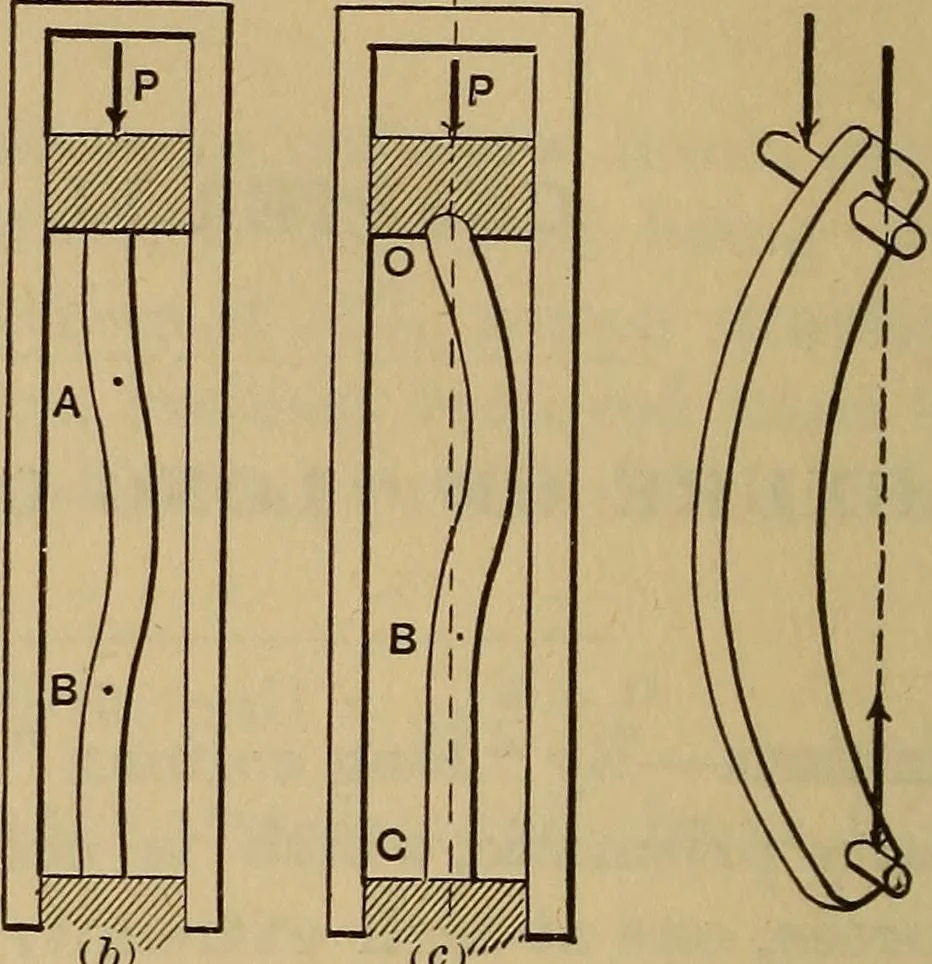

e to turn, or arefixed and thus incapable of turning. The former condi-tion is attained by rounding the ends, or providing themwith hinges or ball-and-socket-joints ; the latter by facingoff each end to an accurate plane surface, the bearing onwhich it rests being plane also, and incapable of… … {a) \V IK/ Fig. 311. Fig. 312. Sometimes a column is fixed at one end while the otherend is not only round but incapable of lateral deviation fromthe tangent line of the other extremity; this state of endconditions is often spoken of as Pin and Square, Fig.311, (c). If the rounding of the ends is…
Mechanics, Applied · Engineering · Strength of materials
