Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 38

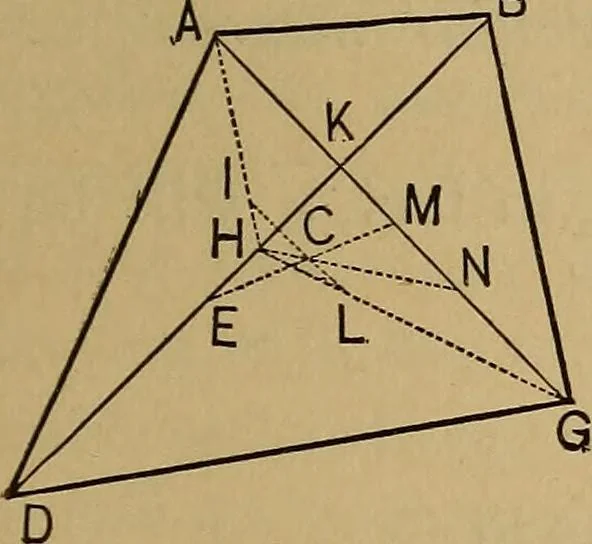

. But from §23, afxdF^ aFx;ax being the length of path described bythe centre of gravity of the plane figure,we may write : The volume of a solid of revolution generatedby a plane figure, lying on one side of the axis, equals thearea of the figure multiplied by the length of curve describedby the… … Fig. 23a. Gravity of any Quadrilateral.—Fig. 23$.Construction; ABGB being any quad-rilateral. Draw the diagonals. On thelong segment BK of BB lay off BE =BK, the shorter, to determine E; simi-larly, determine N on the other diagonal,by making GN = AK. Bisect EK in Hand KNm M. The intersection of…
Mechanics, Applied · Engineering · Strength of materials
